CASE STUDY – Mechanical Engineering Design and Drafting Services

Studying the Effects of Impact Loading, Shock Loading and Thermal Loading on Vertical Fiber Optic Splice Closure Using FEA

Engineering Design & Drafting | CAE Services: CFD & FEA | Reverse Engineering | Rapid Prototyping | Product Design | Value Engineering | PLM Services | Technical Documentation

Case Study Highlights

Effects of Impact Loading, Shock Loading and Thermal Loading on Vertical Fiber Optic Splice Closure Using FEA

The Client

  • Industry   :  Communication Products Manufacturer

The Objective:

  • Evaluating vertical fiber optic splice closure for structural strength during impact loading, shock loading and thermal loading through finite element approach.

The Solution:

  • A 3D assembly model was developed for the fiber optic closure and finite element simulations were performed using impact loading, shock loading and thermal loading conditions as required by the client. The results identified critical stress and deformation regions and were found within permissible limits.

The Challenges:

  • 3D modeling accuracy to capture accurate physics during loading conditions

  • Ensuring proper application of boundary conditions for number of virtual tests including impact loading, shock loading and thermal loading

  • Maintaining accuracy and appropriateness of the FEA results to minimize physical test trials

The client is a manufacturer of various electronics & communication related products and equipment such as cables, sensors, closures etc. Their new design for splice closure needed to be validated virtually under number of loading conditions. The manufacturer as such approached Australian Design and Drafting Services to shorten their development time and seek expert help for virtual simulation testing.

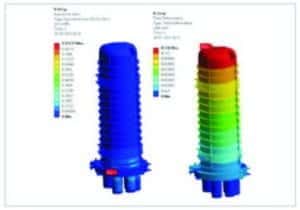

The Solution:Thermal Loading using FEA

  • The software used to perform analysis was ANSYS v14.5 Professional NLS. A 3D Assembly model of Splice Structure was created and analyzed for Various Tests: Shock Loading, Impact Loading (Equivalent Static Loading), Temperature Loading etc. The analysis was performed to determine whether the structure will withstand the Tests performed.

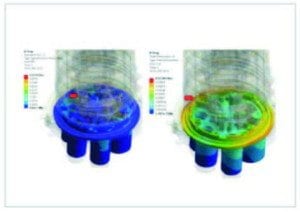

Benefits:Thermal Loading using FEA 1

  • Shortened product development time

  • Reduced cost and time required in physical test trials

  • Provided opportunity to modify design for future applications
